Field Selection Tab in HTML Graph Assistant

Reference:

The Field selection tab, shown in the following image, is used to choose the fields you want to use in a graph.


Top of page

Reference: Field Selection Tab: Available Fields

The following image shows the Available fields area of the Field selection tab. The Available fields area in the Field selection tab, as shown in the following image, provides the following functionalities and options for selecting available fields in a graph.

Available fields

Displays a list of field names from the selected data source.

Define button

Click the Define button to select from New define field, Edit define field, or Delete define field. If you select the New define field or Edit define field, the Define field creator dialog box opens where you can create or edit a defined field. For more information, see Field Selection Tab: Field Creator Dialog Box.

Tree button

When this button is selected, field names are displayed in a tree structure. Optionally, data can be displayed in different ways by clicking the adjacent down-arrow to open a drop-down list that provides options to Show name, Show alias, Show title, or Show description. The Show Field Tree display type is the default value, and for some database structures, the Show Dimension Tree option can be selected.

List icon

This button is selected by default to display a list of all field names. Additional related information can be displayed by clicking the adjacent down-arrow to open a drop-down list that provides options to display Name, Alias, Title, Format, Description, Segment, and Filename. You can also choose the option to Sort by file order.


Top of page

Reference: Field Selection Tab: Graph Fields

The Graph fields area in the Field selection tab, as shown in the following image, provides the following functionalities, including many options, for selecting and displaying fields in a graph.

You can view the selected fields with the following options:

Prefix with the segment name prefixes the selected fields with the segment name.

Prefix with the filename prefixes the selected fields with the name of the data source.

Show the field's alias instead of name displays the aliases defined in the Master File instead of the field names.

Show field's title displays the titles defined in the Master File instead of the field names.

Show field’s description displays the descriptions defined in the Master File instead of the field names.

Field Value Plotted on X axis

Displays the horizontal (X-axis) field that was selected from the Available fields area.

Add button

Adds a field to the X-axis.

Remove button

Removes a field from the X-axis.

Create a separate graph for each value of this field

Displays the second horizontal (X-axis) field (formerly referred to as an Across field) that was selected from the Available fields area.

Add button

Adds a second field to the X-axis.

Remove button

Removes a field from the X-axis.

Field value(s) plotted on Y axis

Displays the vertical (Y-axis) field that has been selected from the Available fields area.

Sum

Creates a graph that aggregates data by the X-axis field. This is the default.

Print

Creates a graph that plots each Y-axis field value on a record-by-record basis. If the selected X-axis value is numeric, a scatter graph is generated; if the selected X-axis value is alphanumeric, a line graph is generated.

New computed field button

Opens the Computed Field Creator dialog box where you can define the parameters for a new computed field. You can also click the adjacent down-arrow to open a drop-down list to select the Edit computed field option. For more information, see Field Selection Tab: Field Creator Dialog Box.

Add button

Adds a field to the Y-axis.

Remove button

Removes a field from the Y-axis.

Move Up or Move Down buttons

Moves the position of the field within the graph.


Top of page

Reference: Field Selection Tab: Field Options

Below the Graph fields area in the Field selection tab is the Field options panel you can display by clicking Show - Field options or hide by clicking Hide - Field options. A different Field options panel is displayed depending on whether you have a Y-axis, X-axis, or secondary X-axis field selected in the Graph fields area.

For the Y-axis Field options Display tab:

The Display tab appears by default when the Field options panel is displayed for Y-axis fields and provides the buttons, fields, and options described after the following image.

Make this field invisible

Check to temporarily hide the display of the selected Y-axis field.

Y axis field label

The selected Y-axis field name is automatically displayed. You can edit this field to display a different label for the Y-axis field.

Summary Type

Select a summary type for the selected Y-axis field. The choices are: Plain field value, Average Square, Average, Count, Distinct, Show first in group, Show last in group, Maximum, Minimum, Percentage, Count Percentage, Row Percentage, Sum, and Total.

Field Color

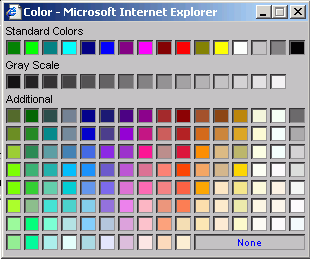

Select to open a pop-up color palette, shown in the following image, where you can select the display color for the selected Y-axis field.

Conditional Styling button

Click to open the conditional styling dialog box, as shown in the following image, which you can use to add conditional styling in a graph.

OK

Returns to the Field selection tab after the conditional styling is added to the graph.

Drill Down

Click to open the drill-down dialog box, which provides the fields and options listed after the following image, that you can use to add drill down capability to a graph.

No action

This option is selected by default. (No procedure will be executed.)

Execute procedure (FOCEXEC)

Select this option to access procedures in the Standard Reports folder of the default domain. Click the procedure you want to execute.

Show all domains

When Execute procedure (FOCEXEC) is selected, click this check box to gain access to procedures in the Standard Reports folders of all available domains.

Execute procedure

The procedure you selected appears in this text box.

Execute URL

Select this option to enter the URL you want to execute.

With parameters

When a parameter is created, it is automatically added to this list box.

Alternate comment for hyperlink

Type text here to display in place of the hyperlink specified in the Execute URL field.

Add button

Click to open the drill-down parameter dialog box, which provides the fields and options listed after the following image.

Parameter name

Enter the parameter name you created in the drill down procedure.

Parameter value: Field

The parameter will be set to the corresponding value of the object the user drills down on in the specified field.

Parameter value: Constant value

The parameter is set to the specified value.

OK button

Returns to the drill down dialog box. The parameter is added to the With parameters list box.

For the Y-axis Field options Visualize tab:

The Visualize tab appears when the Field options panel is displayed for an X-axis field and provides the options described after the following image.

Force the values of this field to be plotted as:

Choose Bar, Line, or Area.

Place this field on the specified axis

You can choose 1st axis or 2nd axis. (Available for dual axis graph types only.)

For the X-axis Field options:

The General tab appears when the Field options panel is displayed for an X-axis field and provides the fields and options described after the following image.

Sorting order

Click Ascending or Descending.

X-axis field label

The X-axis field name is automatically displayed. You can edit this field to display a different label for the X-axis field.

For the Secondary X-axis (Across) Field options:

The General tab appears when the Field options panel is displayed for a second X-axis (Across) field and provides the fields and options described after the following image.

Sorting order

Click Ascending or Descending.

Display graphs in number of columns

Enter a number in the text box.

Merge graphs into a single graph

Click this option button to activate merge functionality.

Axis label

The selected field name is is automatically displayed. You can edit this field to display a different label for this Across field.


Top of page

Reference: Field Selection Tab: Field Creator Dialog Box

Use the Field Creator dialog box to create or edit Defined and Computed fields, as shown in the following image.

Field

Enter a name for the computed or defined field.

Format

Click to display the Change Format dialog box, as shown in the following image.

Format types

Choose:

  • Alphanumeric
  • Floating point
  • Integer
  • Decimal
  • Packed
  • Date (opens additional date related fields in the dialog box)
  • Date-Time (opens additional date related fields in the dialog box)
Length

Choose an available number based on the format type you chose.

Select options

Choose options based on the format type you chose.

Tree or List mode buttons

Opens the field list in either tree or list mode.

Expression box

To create an expression, double-click fields or functions, select items (operators, numbers, characters) from the Field Creator keypad, or type directly in the expression box.

Functions button

Displays a list of predefined functions grouped into categories that include Character, Data Source and Decoding, Date and Time, Format Conversion, Numeric, and System. If you hover your cursor over a function, a brief description appears. The following image shows the list of predefined functions that populate the Field Creator dialog box when you select the Functions button.

Double-click the desired function to add it to the expression box in the Field Creator dialog box. In the expression box, replace each of the function’s arguments with the desired value or field name. Note that each of the available functions is a program that returns a value. For more information about functions, see the Using Functions manual.

Concatenation operators

Concatenates two or more alphanumeric constants and/or fields into a single character string. The concatenation operator has two forms: | (weak concatenation, which preserves trailing blanks) and || (strong concatenation, which moves trailing blanks to the end of a concatenated string).

IF... THEN... ELSE... operators

Creates a conditional expression. A conditional expression assigns a value based on the result of a logical expression. The assigned value can be numeric or alphanumeric. IF, THEN, ELSE logic expressions take this form:

IF expression1 THEN expression2  ELSE expression3

ELSE is an optional operator. All alphanumeric values in conditional expressions must be enclosed in single quotation marks. For example, IF REGION EQ 'West'.

Logical operators

Used to create relational and Boolean expressions. A relational expression returns a value based on a comparison of two individual values (either field values or constants) and a Boolean expression returns a value based on the outcome of two or more relational expressions.

The following logical operators are available:

  • adds the less than (LT) operator to the expression. This operator returns a value if the value on the left is less than the value on the right.
  • adds the greater than (GT) operator to the expression. This operator returns a value if the value on the left is greater than the value on the right.
  • adds the less than or equal to (LE) operator to the expression. This operator returns a value if the value on the left is less than or equal to the value on the right.
  • adds the greater than or equal to (GE) operator to the expression. This operator returns a value if the value on the left is greater than or equal to the value on the right.
  • adds the equal (EQ) operator to the expression. This operator returns a value if the value on the left is equal to the value on the right.
  • adds the not equal to (NE) operator to the expression. This operator returns a value if the value on the left is not equal to the value on the right.
  • AND returns a value if both operands are true.
  • OR returns a value if either operand is true.
  • NOT returns a value if the operand is false.
Arithmetic operators

Click any of the arithmetic operators to use them in your expression: + (addition), - (subtraction), * (multiplication), / (division), ** (exponentiation). Note that two operators cannot appear consecutively.

Parentheses

Adds parentheses to the expression box. Parentheses affect the order in which the specified operations are performed. Note that WebFOCUS performs numeric operations in the order of parentheses, exponentiation, division and multiplication, and addition and subtraction.

Quotation marks

Adds quotation marks to the expression box. Use single quotation marks to enclose alphanumeric and date literals.

Uppercase (U key)

Converts entries in the expression box to uppercase. Note that field names are case-sensitive.
